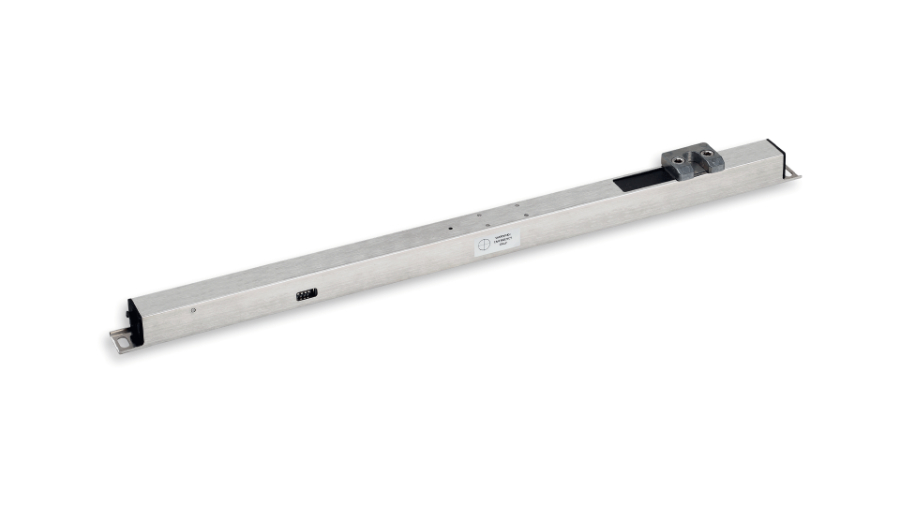

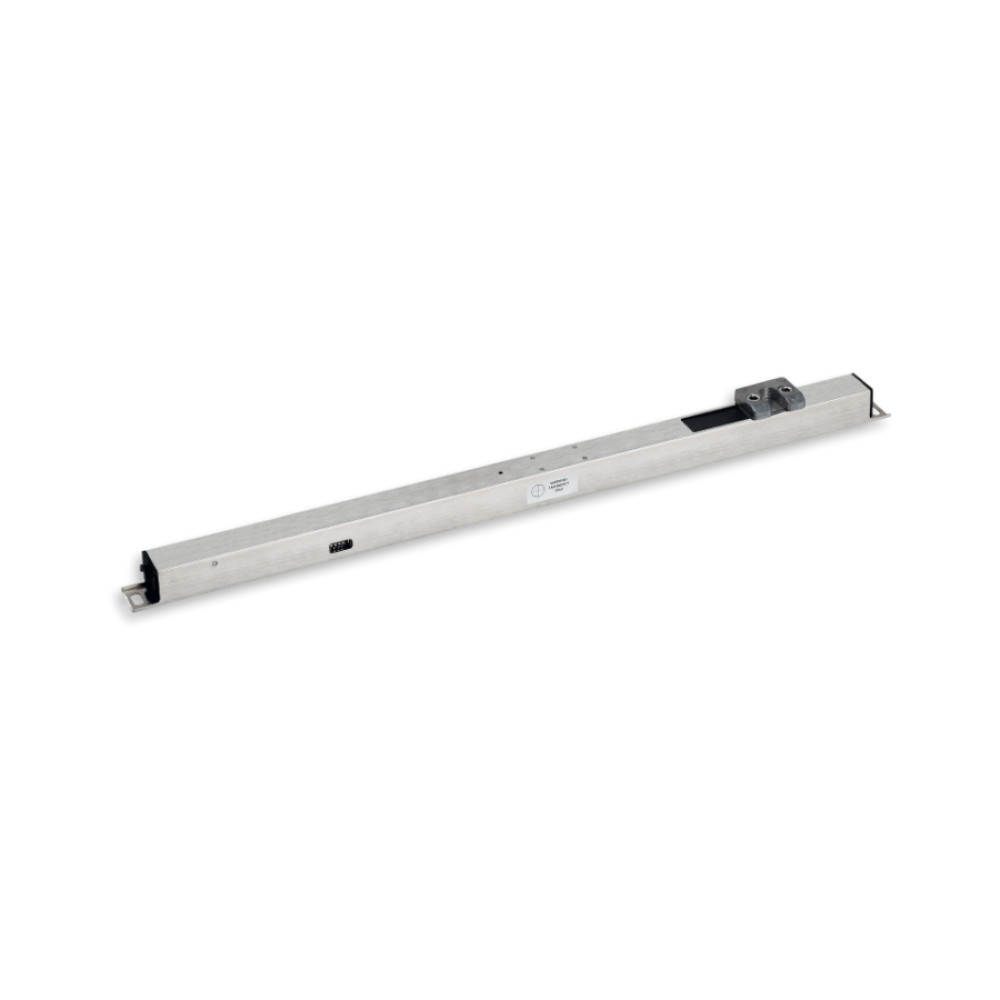

E-LOCK ULTRAFLEX UCS 24 Vdc - Linear Actuator for Moving Perimeter Hardware Windows
E-LOCK ULTRAFLEX UCS is the linear actuator designed to
automatically lock and unlock the perimeter hardware of windows.

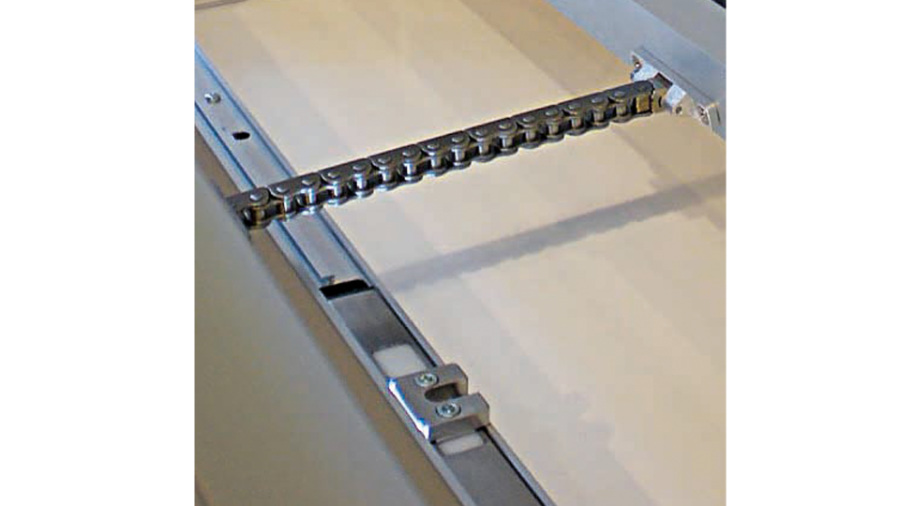

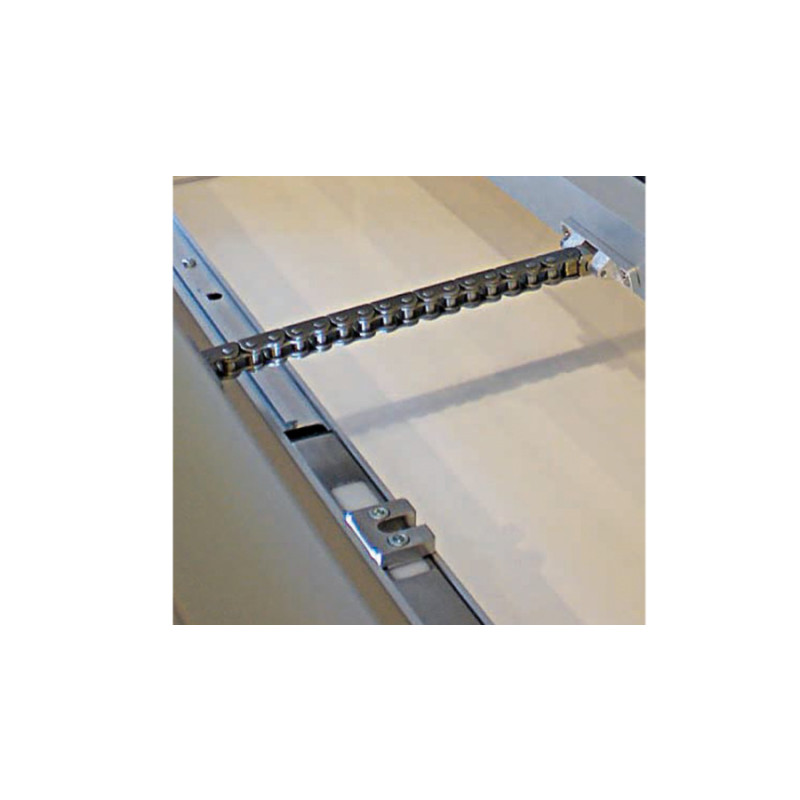

Used in combination with a chain actuator (QUASAR, VEGA, NANO 24 Vdc series), it guarantees
maximum sealing when closing the window, even in the presence of multiple locking points.
Available in the version with brackets (installation inside the profile) or with long fork (installation outside on a milled profile), E-LOCK adapts to different architectural configurations. It is also compatible with SHEV (Smoke and Heat Exhaust Ventilators) systems according to the EN 12101-2 standard.
Main features E-LOCK ULTRAFLEX UCS 24 Vdc
- Linear movement for perimeter hardware operation;
- High locking force (600 N in push and pull);
- Selectable stroke: 19 or 38 mm (via internal dip-switches);
- Stainless steel casing, sturdy and durable;
- Possibility of mounting on both sides thanks to the reversible plate;
- Manual release mechanism for emergencies included;
- Compatible with UCS 24V actuators QUASAR, VEGA and NANO series;
- BMS version available for management via Building Management System;
- Synchronized logic operation with chain actuator (automatic opening/closing sequence).
Technical specifications E-LOCK ULTRAFLEX UCS 24 Vdc
- Power supply: 24 Vdc ±10%;
- Current draw at maximum load: 0.3 A;
- Selectable stroke: 19mm or 38mm;
- Full load speed: ~1.6 mm/s;
- Force: 600N (push and pull);
- End of travel: Hall sensor;
- Protection: Electronic shutdown in case of error;
- Degree of protection: IP32;
- Command: Reverse polarity;
- Parallel connection: supported;
- Assembly: with brackets or long fork (dedicated kit);
- SHEV compatibility: EN 12101-2 compliant;
- Operating temperature: -10°C to +60°C (indoor use);
- Compact size, installation can be integrated into the window profile.
E-LOCK ULTRAFLEX UCS 24 Vdc installation mode

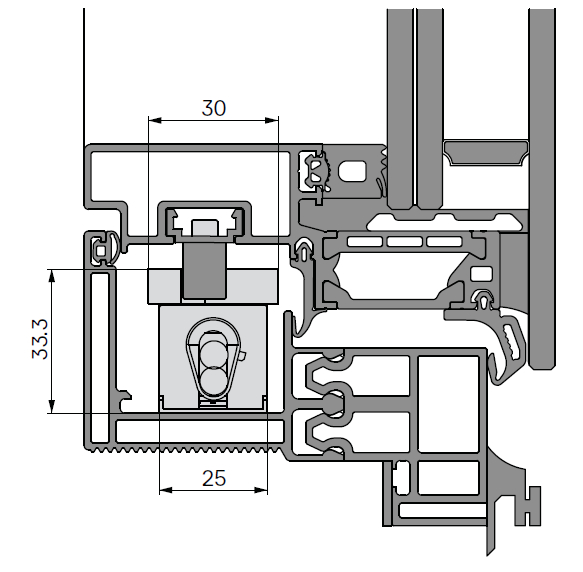

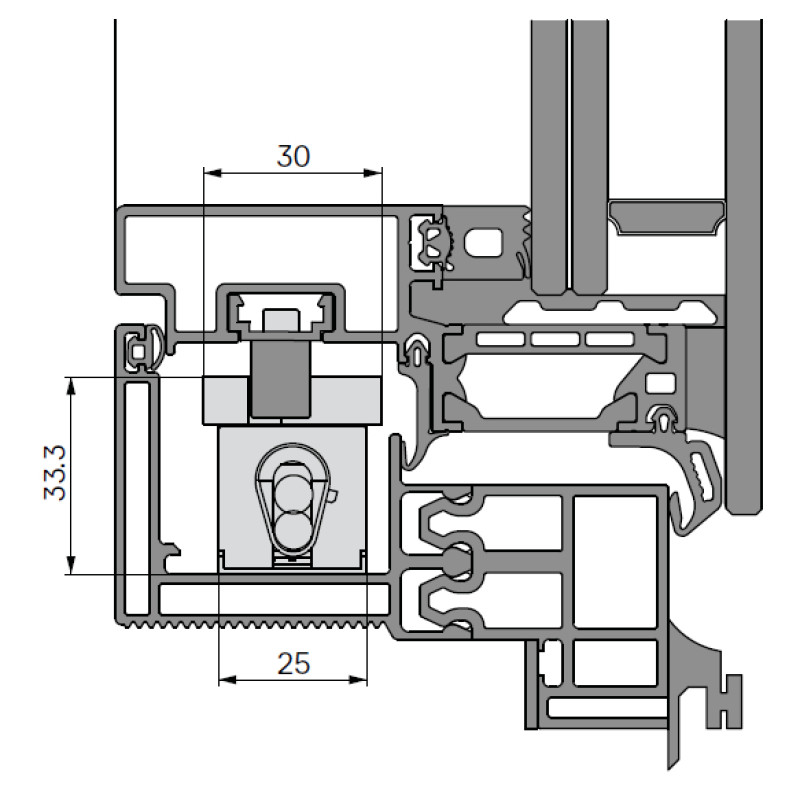

- With brackets : actuator integrated inside the window profile;

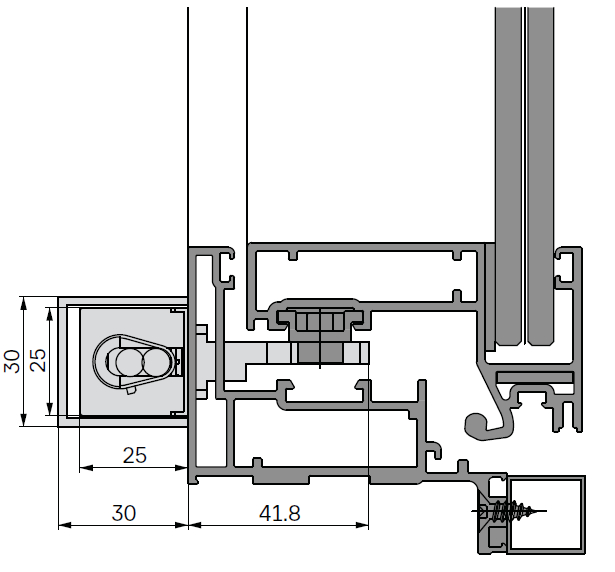

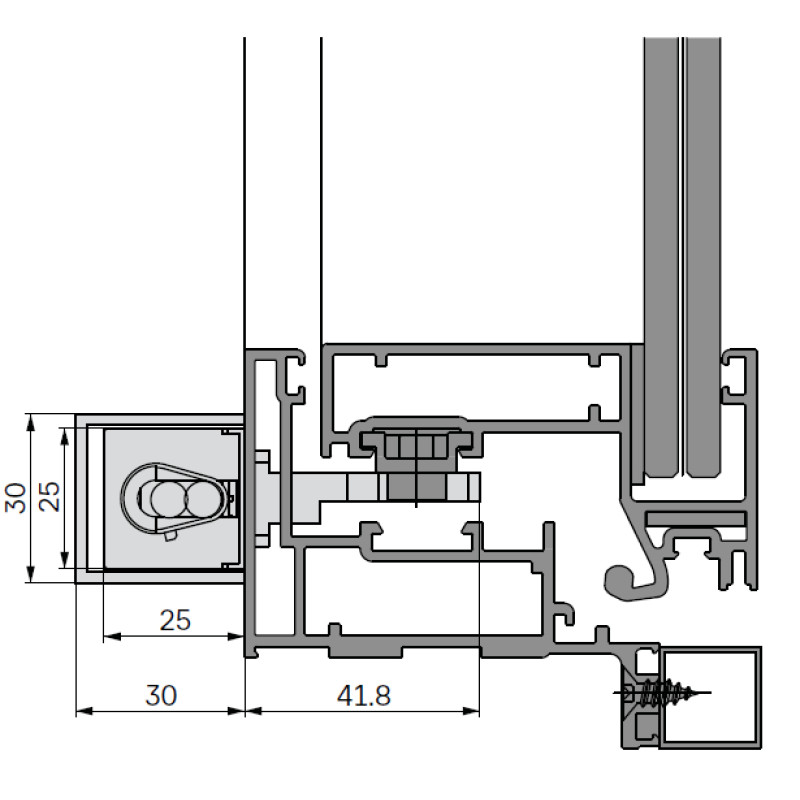

- With long fork : actuator external to the profile, with connection to the hardware via milling;
- The access hole for emergency release must be visible and marked during installation;
- Compatible with automatic opening and closing sequences via E-Lock logic + chain actuator.
Safety and maintenance E-LOCK UCS 24 Vdc
- The emergency mechanism allows manual release in the event of a power failure;
- System protected by return to safety position in case of obstacles or low voltage;
- Installation to be carried out by qualified personnel only.
