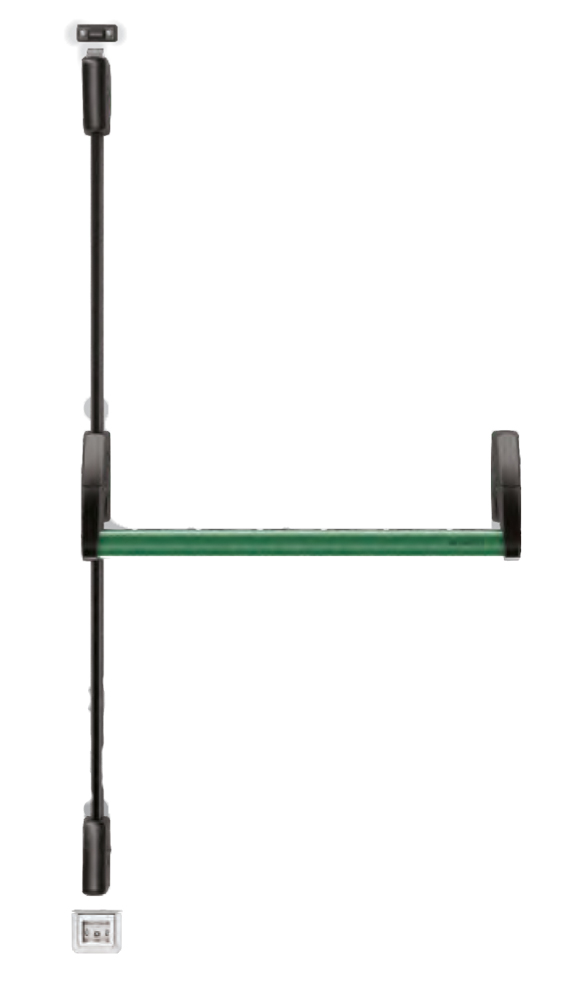

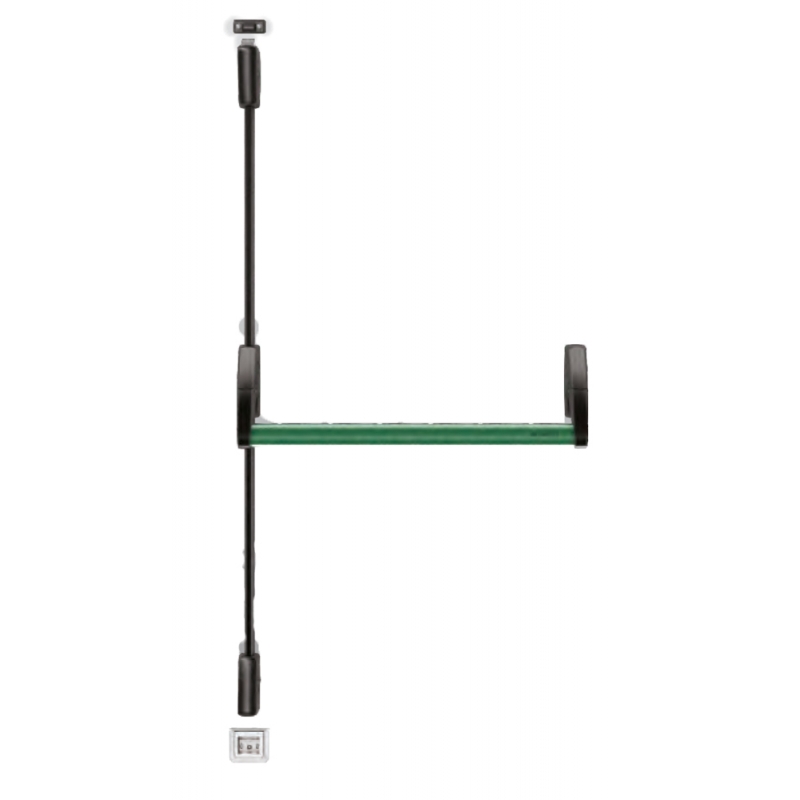

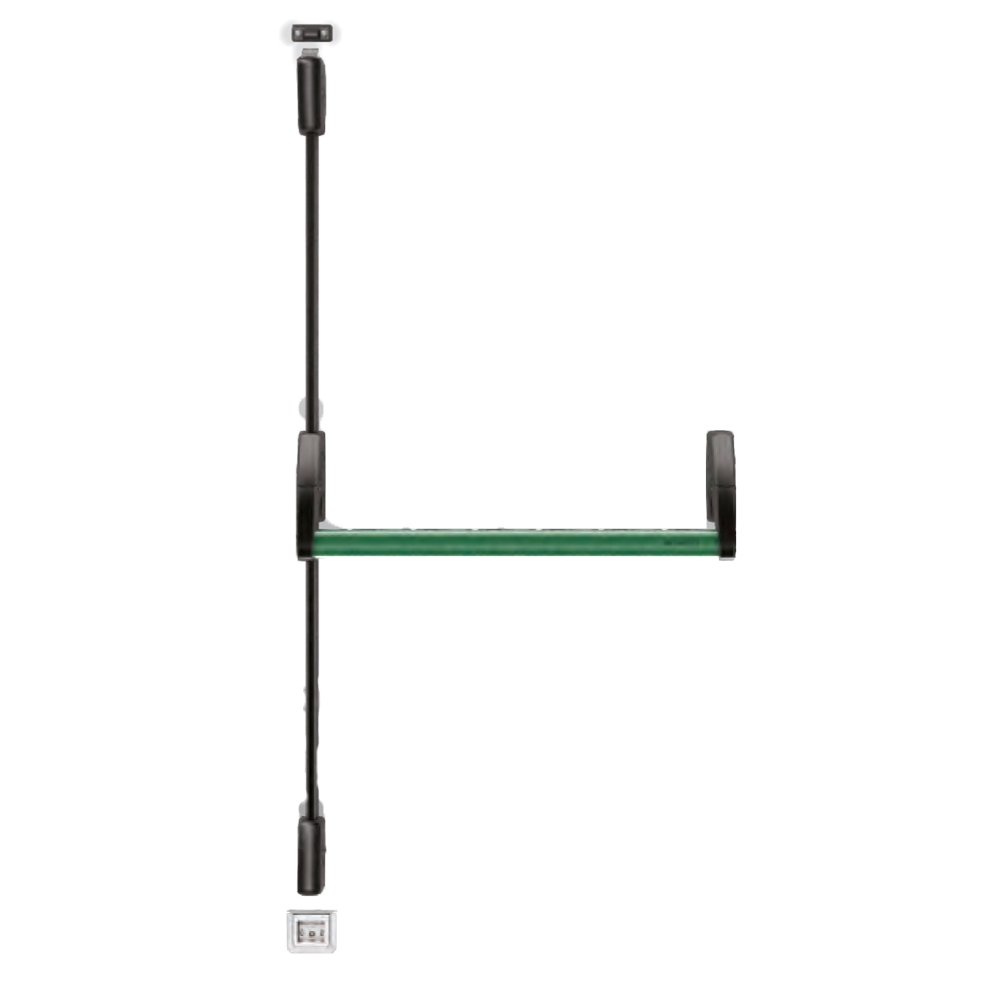

Savio Juvarra Black Ambidextrous Vertical 2-Point Locking Panic Bar Handle
Vertical ambidextrous panic handle with
2 locking points , lever version, in zama and galvanized steel.
The
Savio Juvarra vertical panic exit device represents a reliable and robust solution
for emergency doors, fire exits and accesses in public or industrial buildings .
This 2-point locking panic bar
ensures quick and safe opening in the event of an evacuation , in compliance with current safety regulations.
Designed to be installed on both right and left doors , it is equipped with a horizontal lever, vertical rods and components in zama, steel and aluminium, to offer maximum resistance and durability over time.
Savio Juvarra 2-point locking bar – safety and quality for emergency exits
Complete with: 3 fixing plates in galvanized steel and 1 fixing plate in nylon, 1200 mm bar and 1 striker plate in painted steel, 1 floor striker plate in stainless steel, 1 black nylon insert, 1 upper rod and 1 lower rod in aluminium, 1 cover 1449 mm and 1 cover 1037 mm in painted aluminium, 2 adjustable loops in black galvanized zama, 2 TS screws Ø 4.2X16, 10 TS screws Ø 4.2x13, 4 TC screws Ø 4.2x13, 2 TC screws Ø 4.2x19, 2 TC screws 4.8x13, 2 TS screws M5x6 and 14 TS screws M4x5 in galvanized steel.
Finish: Black.
For doors with a useful passage width from 800 to 1240mm and max height 2450mm.

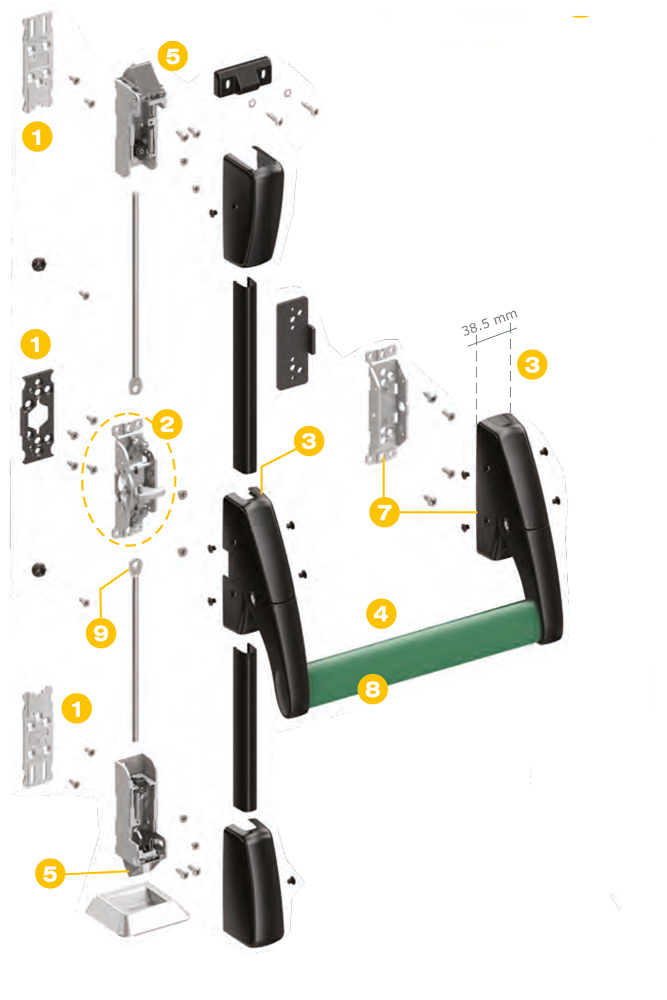

JUVARRA By Savio, THE INNOVATIVE PANIC BAR HANDLE
- 1) All supports and latches are screwed onto steel counterplates (also weldable) for easy, solid and quick fixing;
- 2) Fully ambidextrous mechanism;
- 3) Small dimensions (38.5mm) for assembly even on standard profiles;
- 4) Wide profile horizontal bars for better maneuverability;
- 5) Adjustable top and bottom latches with anti-burglary device;
- 7) Secondary support prepared for the insertion of the day stop device and on the microswitch;
- 8) Horizontal bar to be inserted with wide manufacturing tolerances, in steel with 40mm oval section.
- 9) Simplified forend attachment.

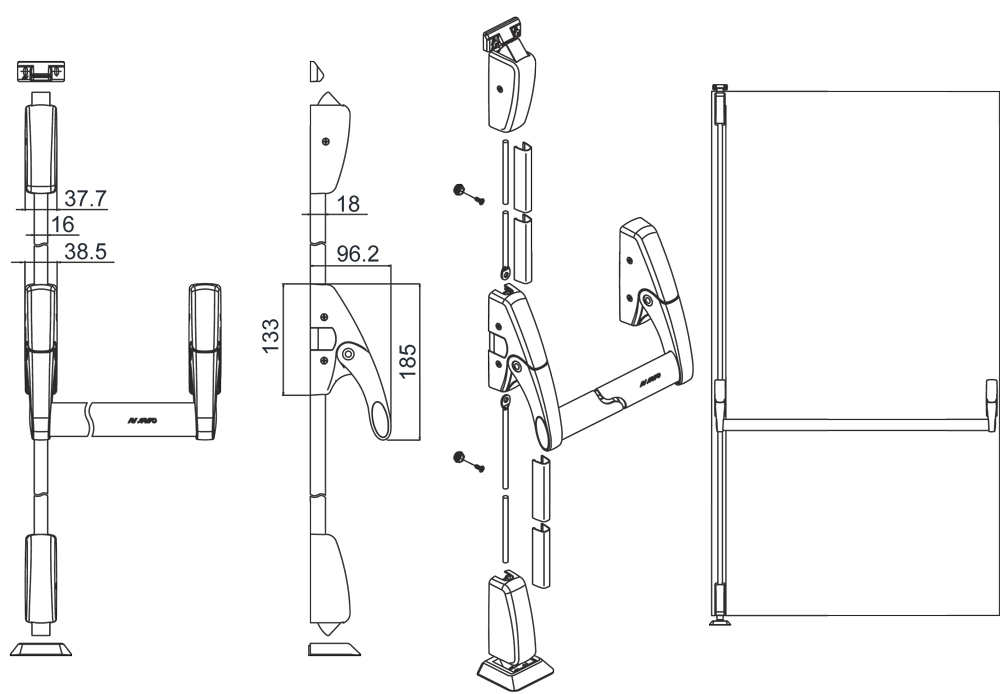

By clicking on "Documents" (above) you can download the Savio Juvarra panic exit device brochure, the application drawing of this product, the certifications and the relative assembly instructions.
