Kimo 225 Nekos - 200N Chain Actuator - The smallest window motor

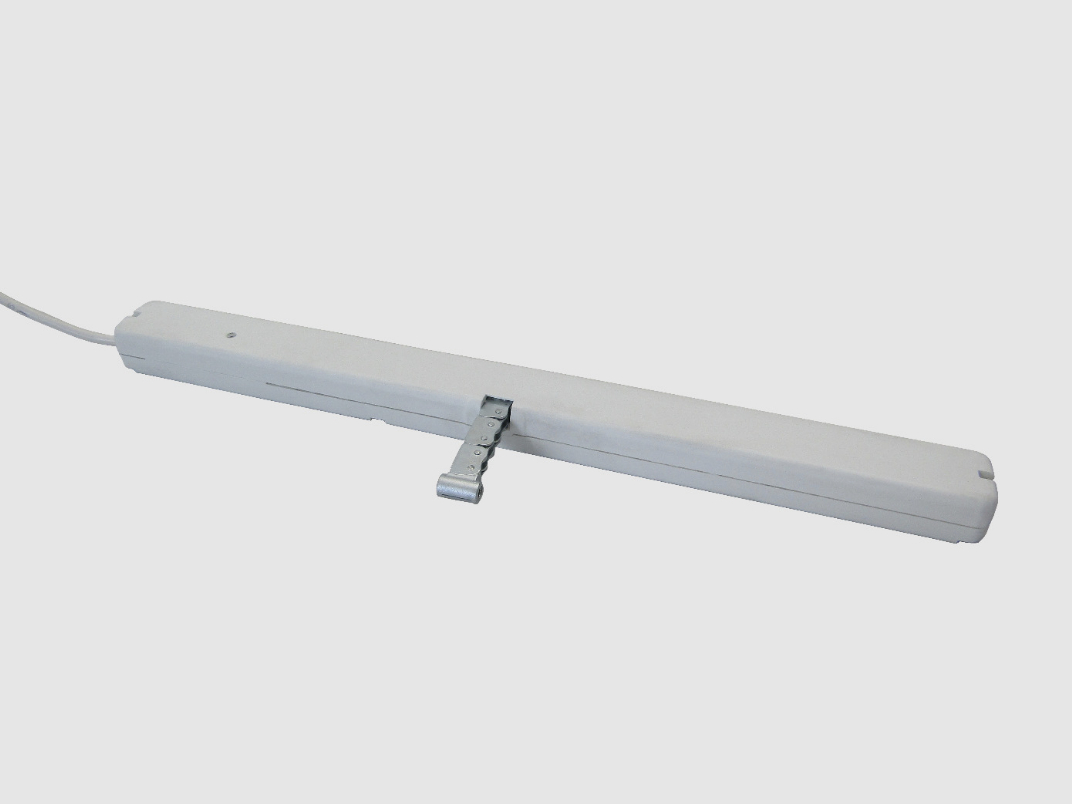

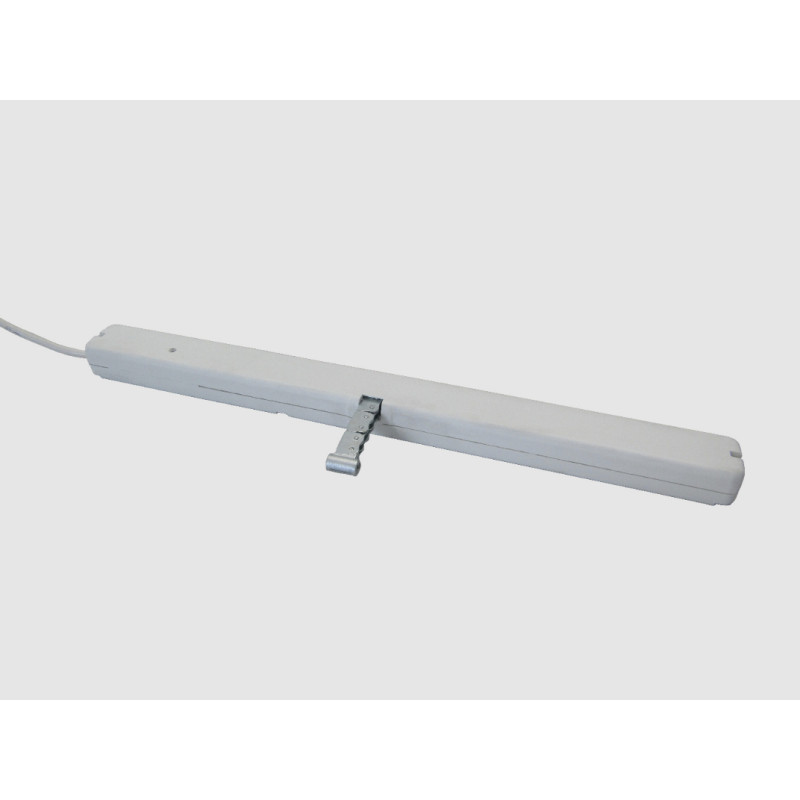

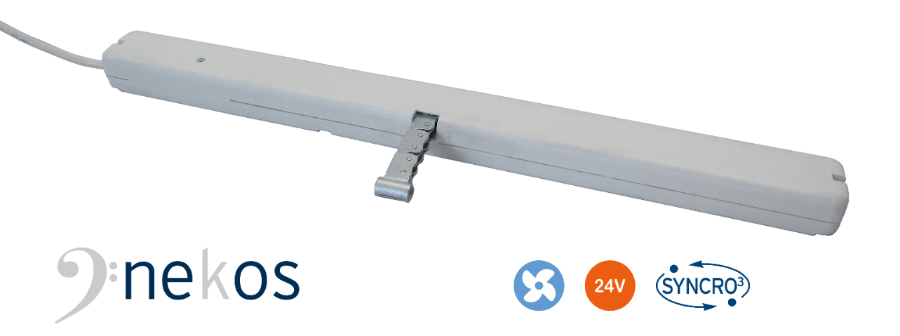

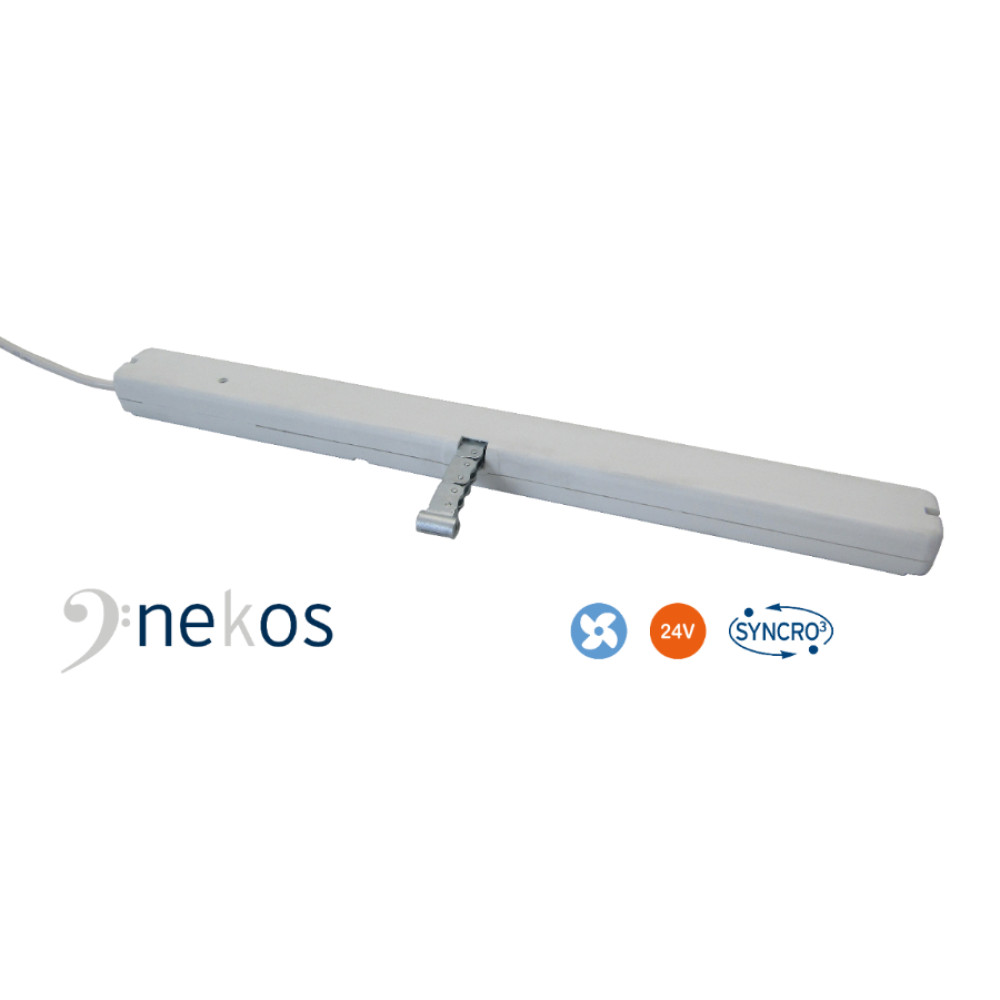

Kimo 225 Nekos is an electric chain actuator for concealed installations inside windows with very small profiles.
Why choose the Kimo Nekos 225?
- Compact and efficient: thanks to its ultra-compact dimensions, it is perfect for small spaces and thin-profile windows;
- Reinforced chain, even more resistant;
- Adjustable strokes from 50 mm to 250 mm, a feature that makes this product extremely versatile;
- New Syncro3+ software that improves interfacing with other devices;
- Enhanced security: Combined with the K-LOCK+ electric lock for safe and reliable locking.
Available colors for Kimo 225 Nekos
- Black (RAL9005);
- Grey (RAL9006);
- White (RAL9010).
Kimo 225 Nekos: which windows and doors is this chain actuator suitable for?
We recommend the Kimo 225 Nekos actuator for:
- protruding windows
- vasistas windows
- pivot windows
Kimo 225 Nekos is a small and innovative chain actuator
- It has a multifunction microprocessor and, despite its small size, has capabilities equal to or superior to other actuators.
- Its size is very compact (22.6 × 31.1 × 354.4 mm), which ensures that it can be used on concealed windows.
- It is also very quiet.
Synchronize up to 8 actuators
Kimo 225 Nekos already has the synchronization function (Nekos Syncro3 - Patented).
You can create a synchronized system of up to 8 actuators, without any control unit.
To activate synchronization, simply use the dip-switch function.
Choose between 3 races
You can choose between 3 races with quick and immediate dip-switch selection.
It has a progressive starting ramp and overload protection is provided along the entire travel.
Relax function : after each stop it goes into relax mode to reabsorb power.
Chain patented by Nekos
The 3-link chain is a Nekos company patent , produced in the company-owned factory.
This way the environmental impact and size are even smaller.
Even easier assembly
In flush-mounted installation, the brackets allow access for inspection of the actuator, even with the window closed or without power.
High-strength actuator
The Kimo 225 Nekos chain actuator is made of high-strength composite materials with fiberglass.
You can create a window lock against thieves
You can create a burglar-proof window system. Just combine it with:
- K-LOCK and
- perimeter hardware
List of products that can be combined with Kimo 202 Nekos
- K-LOCK
- AUX VASISTAS
- CENTRAL PROJECTION KL and KL-R
- MODIX 2/4/6 PIVOT WINDOWS
- MY-SUN1 and MY-SUN3
- ALI'SW
Technical features Kimo 225 Nekos
- Pulling force: 200 N.
- Push force: (see manual diagram, variable).
- Available strokes: adjustable from 50mm to 250mm.
- Supply voltage: 24V SELV.
- Current draw at rated load: 0.45 A.
- Power consumption at rated load: 10.8 W.
- No-load speed (opening/closing): 3 mm/s.
- Idle stroke duration (250 mm): ~83 s.
- Electrical insulation: Class III.
- Service type: 5 cycles.
- Operating temperature: -20°C / +70°C.
- Degree of protection: IP42.
- Opening limit switch: electronic with reset setting.
- Closing limit switch: with power absorption.
- Syncro³+ synchronization: yes (up to 8 actuators).
- Parallel connection: yes (up to 20 actuators).
- Compatible with K-LOCK+ electric lock.
- Rated holding force: 1000 N.
- Power cord length: 2 m.
- Dimensions: 22.6 × 31.1 × 354.4 mm.
- Weight: 0.45 kg.
Note: The KIMO 225 is an improvement over the previous KIMO 202 because it has a lower speed, greater precision, and Syncro³+ technology for multiple synchronization of up to 8 actuators. It is also ready for the PGM accessory to program force and speed.
Nekos Actuators: The smallest window actuators
Nekos is an Italian company specializing in the production of
window motors . Research and innovation have led to the development of the old Kimo 202 series of actuators and today the updated Kimo 225 series, the smallest window actuators.
