pba Knob Handle in Stainless Steel AISI 316L
Customize your pba knob by choosing the variants.
You can choose the finish, handle grip and knob grip.
Standard finish: satin
Finish on request: glossy (contact us if you are interested)
Handle grip variants:
“L” handle
“U” handle
“T” handle
Knob grip variants:
Flat round
Spherical tilted

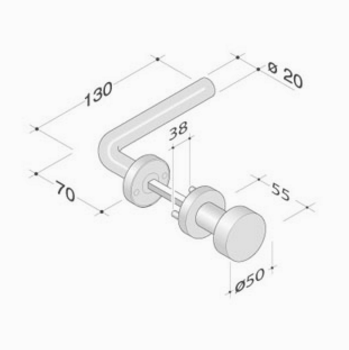

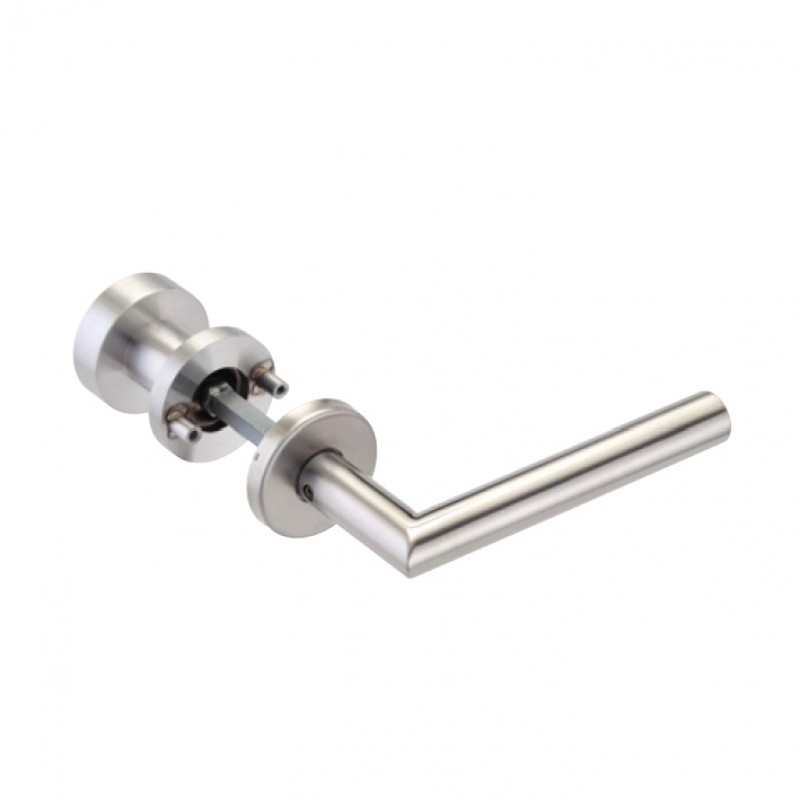

pba Knob Handle 2MM.510.000F “L” Handle - Round Flat
- Handle – Fixed Knob in AISI 316L Stainless Steel.
- “L” shaped handle grip, length 130 mm.
- Handle diameter: 20 mm.
- Round rosette diameter 50 mm, height 8.5 mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed round flat handle diameter 50 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.

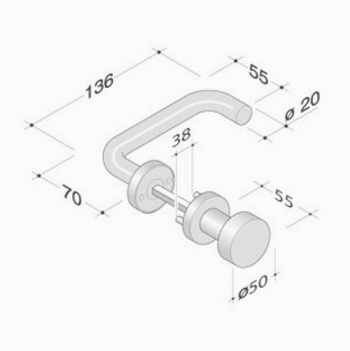

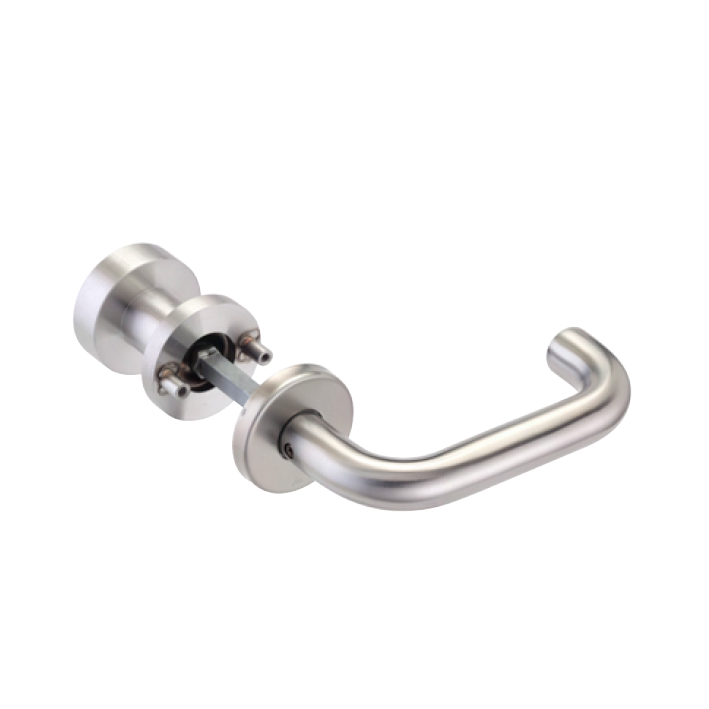

pba Knob Handle 2MM.511.000F “U” Handle - Round Flat
- Grip “U” handle length 136 mm.
- Handle diameter: 20 mm.
- Round rosette diameter 50 mm, height 8.5 mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed round flat handle diameter 50 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.

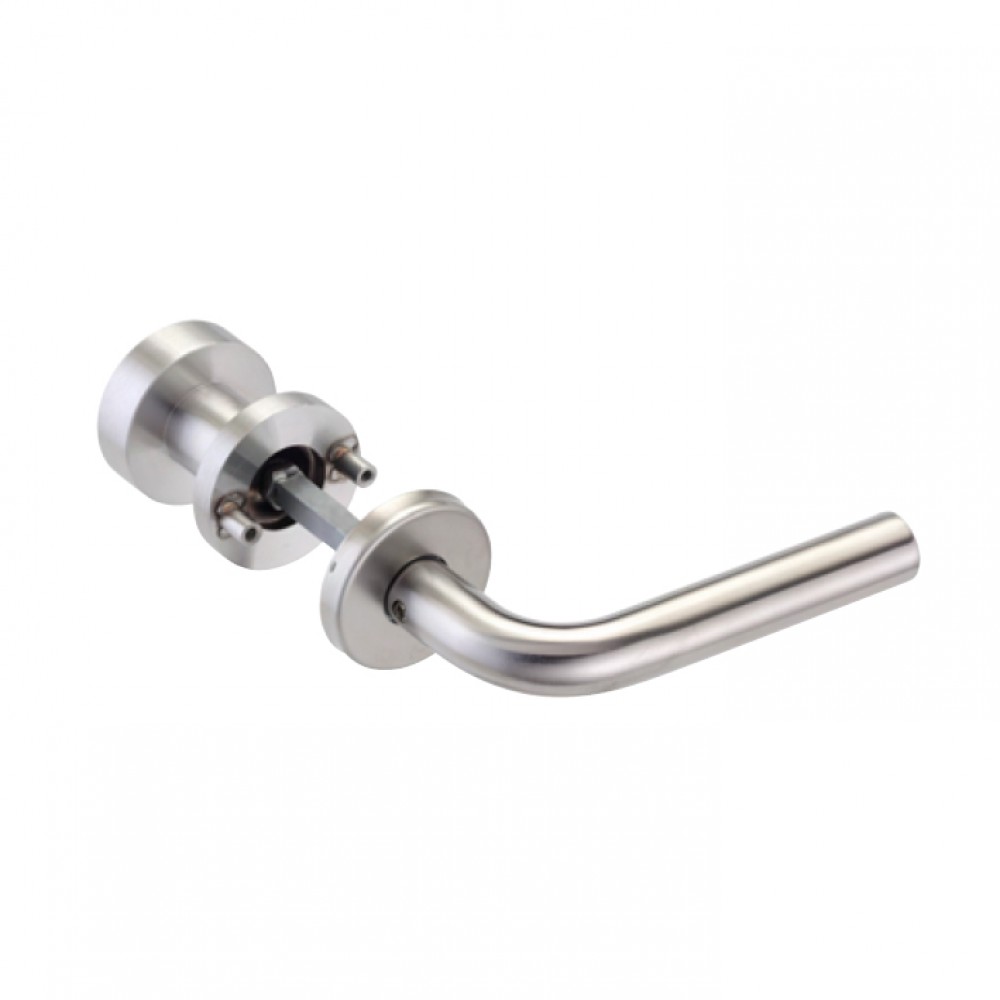

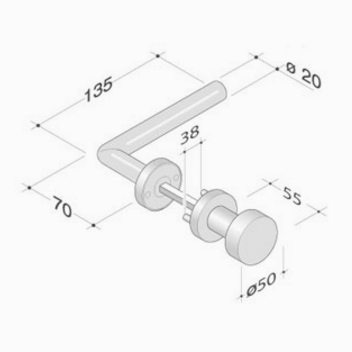

pba Knob Handle 2MM.513.000F “T” Handle - Round Flat
- “T” handle grip length 135 mm.
- Handle diameter: 20 mm.
- Round rosette diameter 50 mm, height 8.5 mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed round flat handle diameter 50 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.

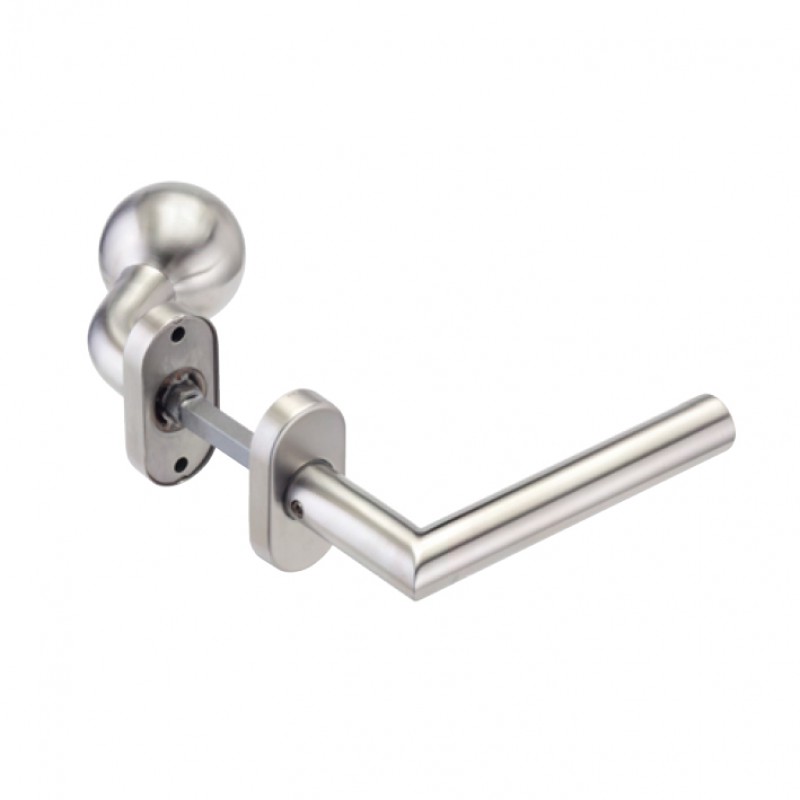

pba Knob Handle 2MM.530.000F “L” Handle - Spherical inclined
- “L” shaped handle grip length 130 mm.
- Handle diameter: 20 mm.
- Oval rosette 32mm x 62mm, height 8.5mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed spherical handle diameter 50 mm with inclined support fixed on oval rosette diameter 32 mm x 62 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.

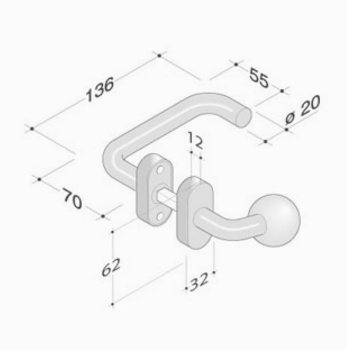

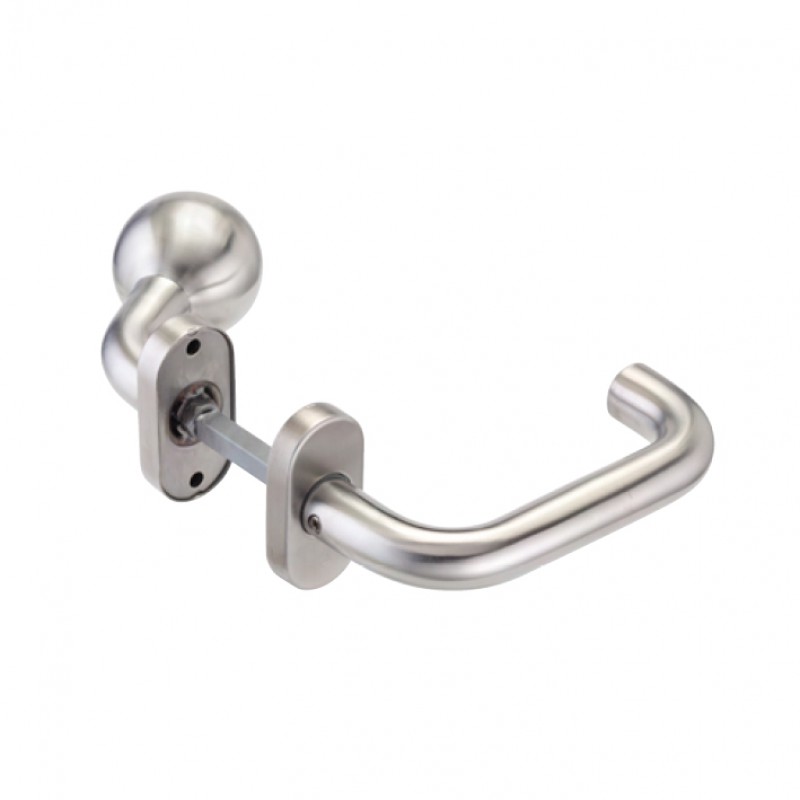

pba Knob Handle 2MM.531.000F “U” Handle - Spherical inclined
- Handle – Fixed Knob in AISI 316L Stainless Steel.
- Grip “U” handle length 136 mm.
- Handle diameter: 20 mm.
- Oval rosette 32mm x 62mm, height 8.5mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed spherical handle diameter 50 mm with inclined support fixed on oval rosette diameter 32 mm x 62 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.

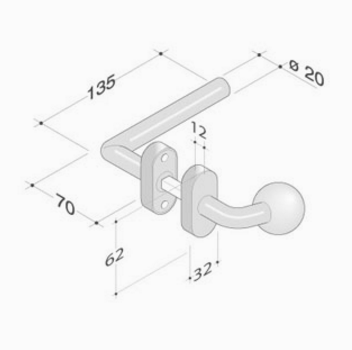

pba Knob Handle 2MM.533.000F “T” Handle - Spherical inclined
- Handle – Fixed Knob in AISI 316L Stainless Steel.
- “T” handle grip length 135 mm.
- Handle diameter: 20 mm.
- Oval rosette 32mm x 62mm, height 8.5mm.
- Metal alloy under-rosette with return spring.
- Knob in AISI 316L stainless steel.
- Fixed spherical handle diameter 50 mm with inclined support fixed on oval rosette diameter 32 mm x 62 mm.
- Metal alloy under-rosette.
- 8mm galvanized steel frame with M12 fixing for fixed knob.
- AISI 316L steel fixing screw with TORX socket.
- Interference-grind square-head fastening system with high mechanical strength.
Sale pba: the brand of AISI 316L stainless steel
All pba products are strictly Made in Italy.
