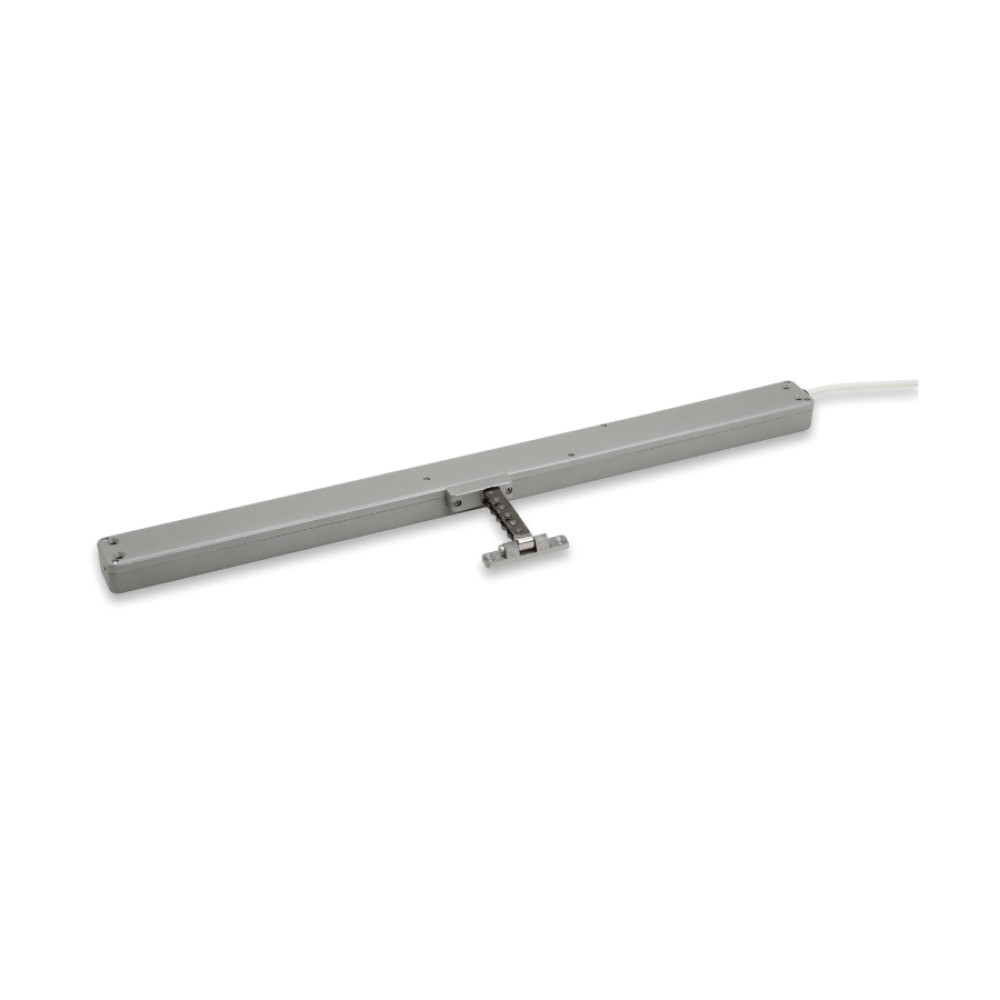

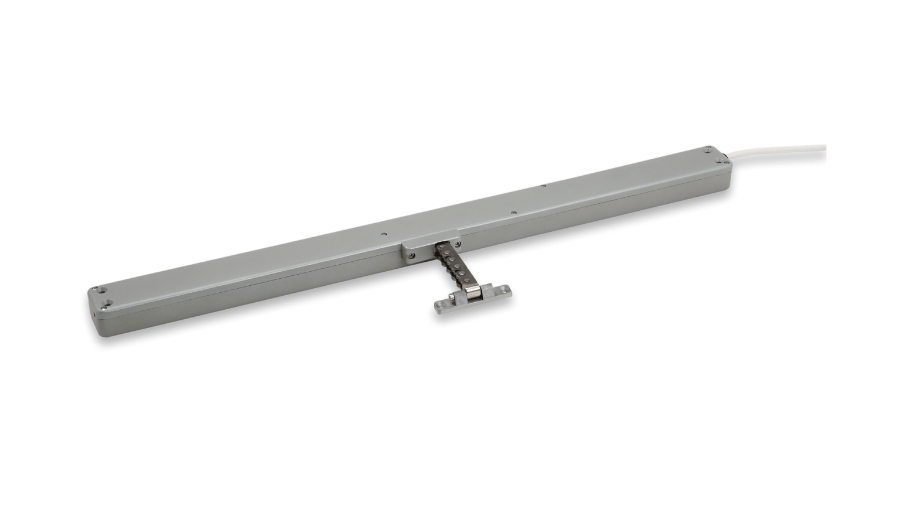

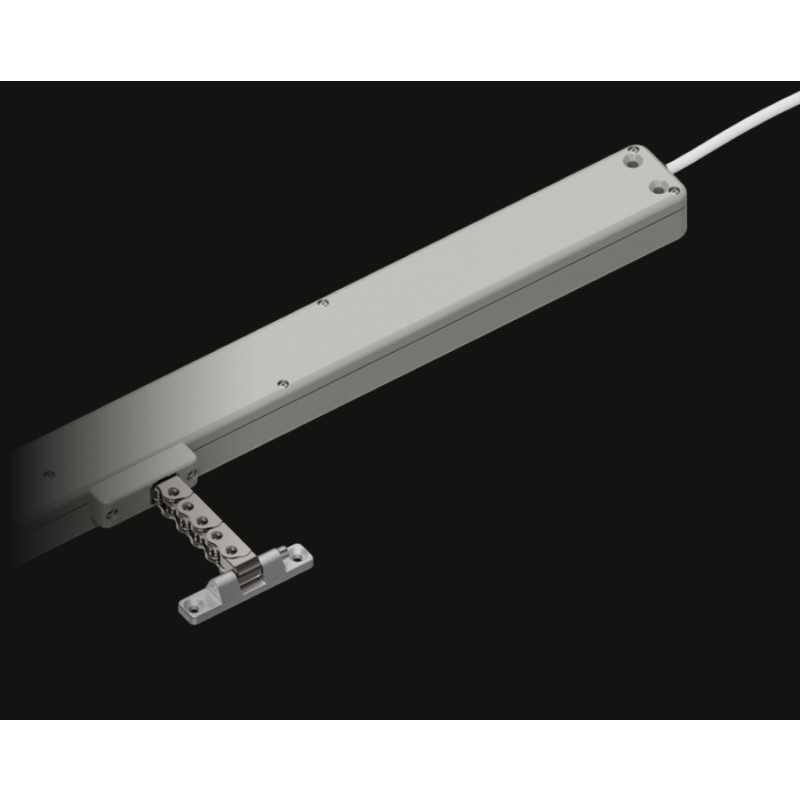

QUASAR Ultraflex UCS - Actuator with Stainless Steel Chain
The
QUASAR Ultraflex Control Systems chain actuator is the professional solution for the automation of top-hung, top-hung, roof and casement windows.
Equipped with a high-strength double-link stainless steel chain , it is designed to guarantee strength, silence and reliability over time, even in heavy-duty conditions.
Available in different versions to meet any installation need, on this page you will find a selection of the most requested variants. If you need other configurations (Synchro, Bowchain, Drawbridge etc.), you can request a free quote.
Ultraflex UCS chain motors represent one of the most reliable choices for window automation, thanks to the combination of resistant materials, advanced electronic technology and ease of installation.
If you are looking for certified, high-performance actuators also suitable for SHEV (Smoke and Heat Exhaust Ventilators) applications, QUASAR UCS is the right answer.
Main features QUASAR Ultraflex UCS
- Stainless steel electric chain actuator;
- Useful stroke up to 500 mm;
- Push and pull: 300 N;
- Opening/closing speed: 15 mm/s;
- Electronic protection in case of overload;
- Electronic stop at the end of the stroke;

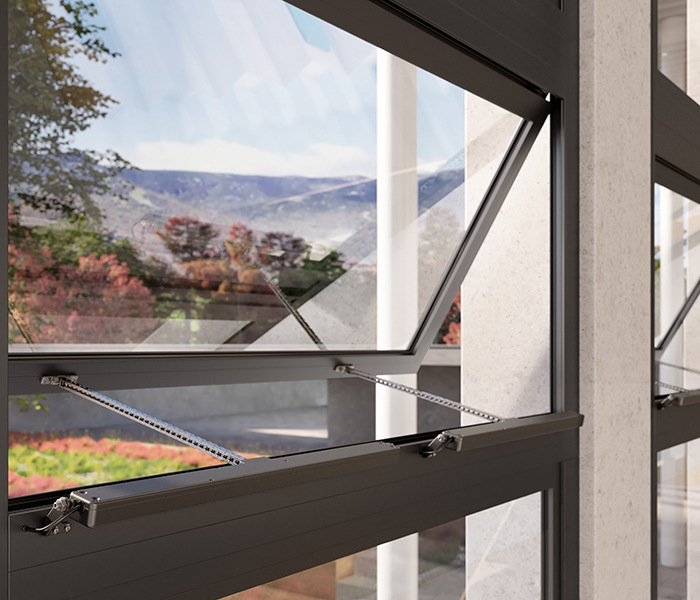

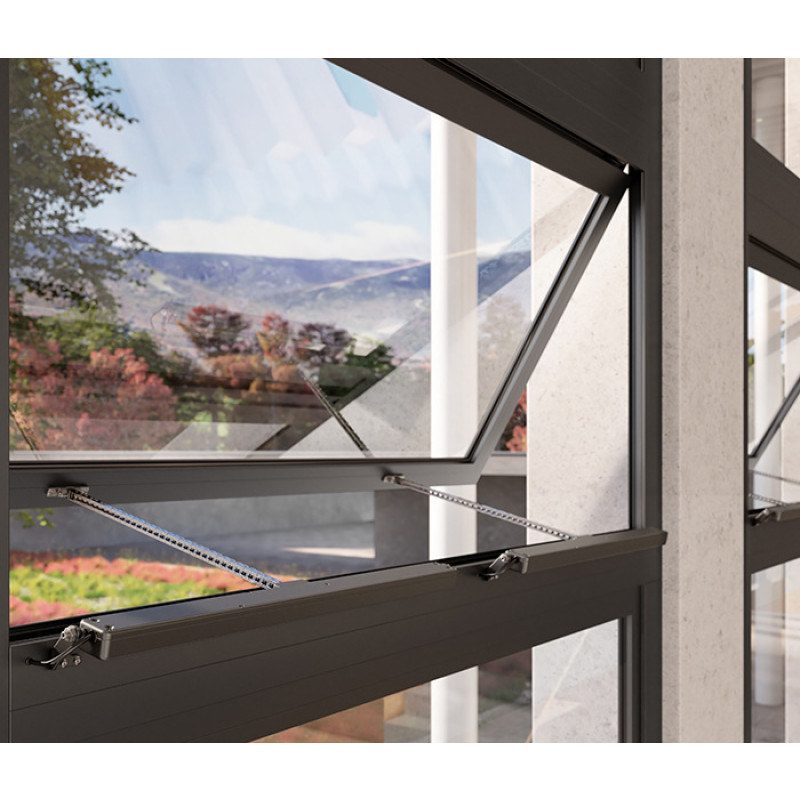

- Ideal for hopper, top-hung, roof or vertical windows;

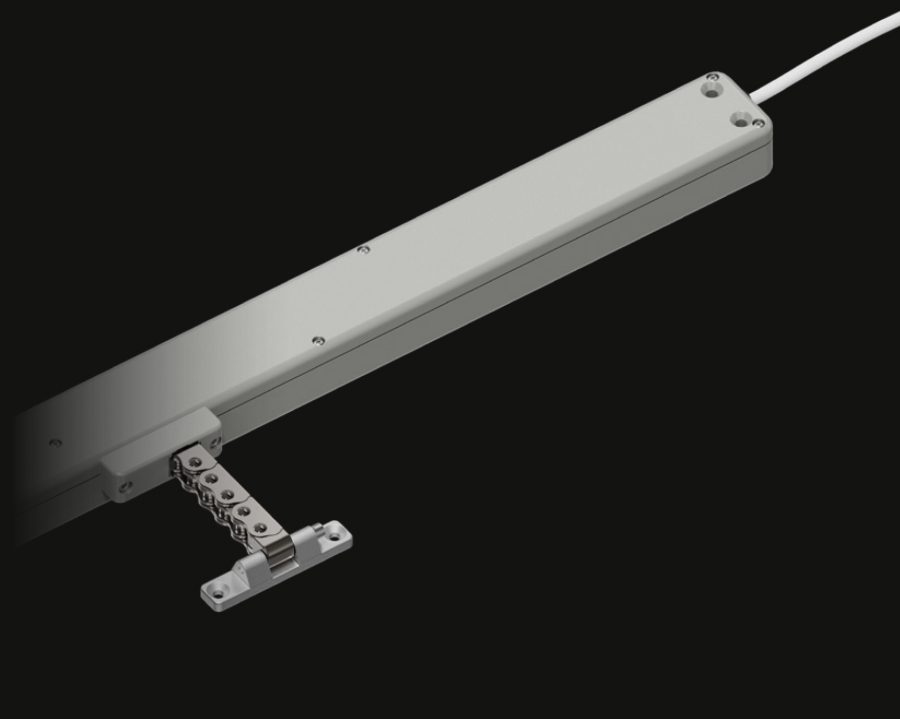

- Chain with central exit;

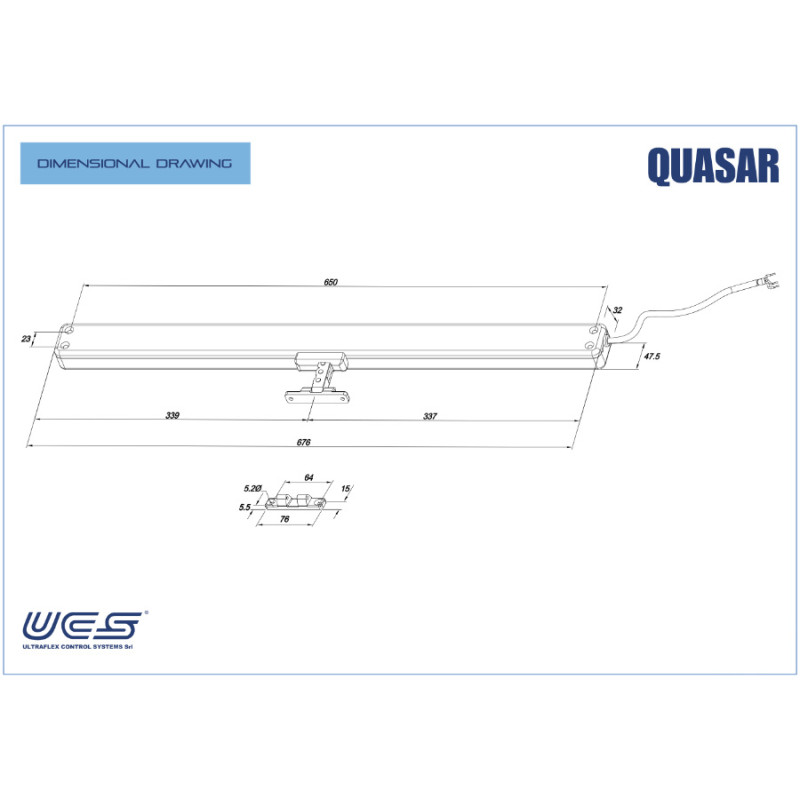

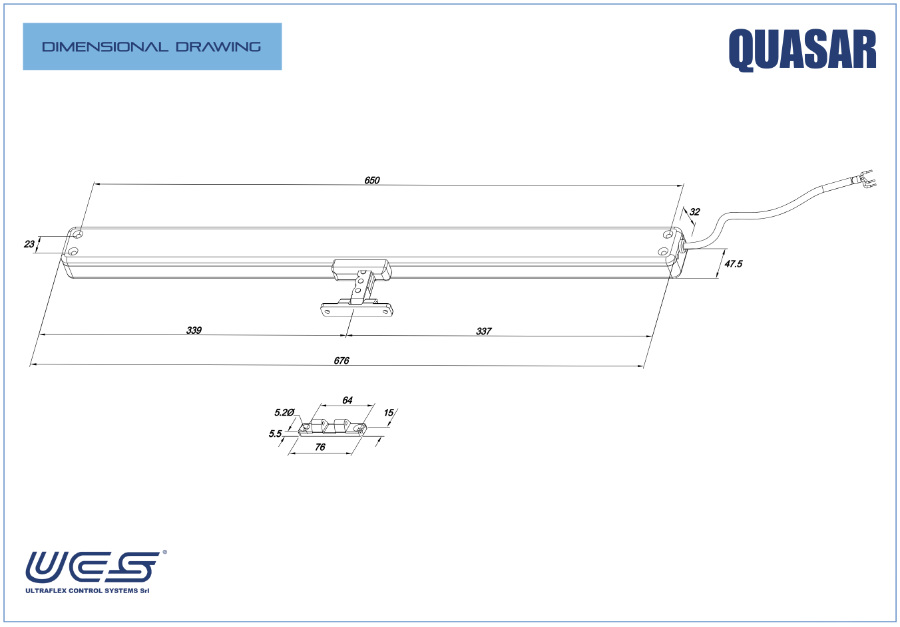

- Compact design: only 47 × 32 mm;
- Quick assembly with optional brackets;
- Can be used in parallel with other actuators (Synchro);
- Compatible with E-Lock and PLUSULTRA locking device;
- Available with 24 Vdc or 230 Vac power supply.
QUASAR Ultraflex UCS Technical Specifications
- Power supply: 24 Vdc ±10% or 120–230 Vac ±10%;
- Maximum current consumption: 0.2A (DC) / 0.4A (AC);
- Maximum thrust force: 300N;
- Locking force: up to 3000 N;
- Protection class: IP40 (IP42 on request);
- Duty cycle: 50%;
- Available stroke: 500 mm;
- Cable: 1.5m (2 wires for DC, 3 wires + ground for AC);
- Colours: grey RAL 9006, black RAL 9005, white RAL 9010.
Ultraflex Chain Motors for Windows
Chain motors for windows are a practical and safe solution for the automation of top-hung, top-hung or roof windows (especially when manual opening is difficult or inconvenient).
Among the most reliable manufacturers in the sector is
Ultraflex Control Systems , an Italian company internationally recognized for the quality of its electric actuators and continuous technical innovation.
If you are looking for
Ultraflex actuators at competitive prices, the right place is Windowo, the online shop specialized in
window automation and technical accessories, with updated offers, expert support and fast delivery.
